Microscope Camera DP74

Intelligent Imaging for an Improved Workflow

The DP74 color microscope camera’s combination of high image quality and smart assist guidance dedicated for microscopy provides you faster and more comfortable imaging.

Capture High-Quality Images Quickly and Easily

Smooth, high resolution, and high sensitivity—the DP74 color camera is optimized for microscopic observation.

High Color Fidelity for Most Stains Used in the Life Sciences

Excellent Color Fidelity for Most Life Science Stains

The DP74 camera’s multiaxis color reproduction technology adjusts color independently for individual stained samples, providing excellent color fidelity for a wide variety of stains.

Accelerate Your Workflow with the Navigator

Easily pinpoint the area of interest with the position navigator.

  • Identify the position you’re observing within a sample using the map
  • Record images with context information
  • Link micro and macro images

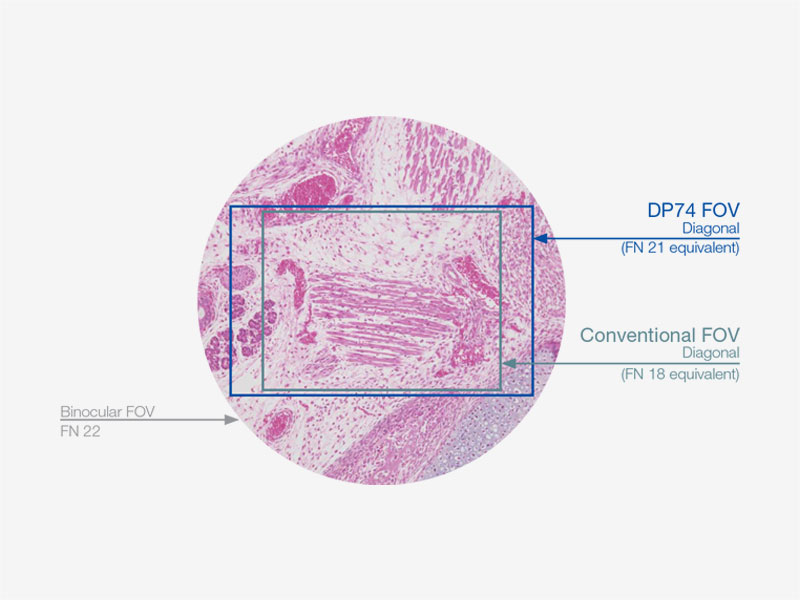

One of the Widest Field of Views Available

The DP74 color fluorescence camera with a 0.63X C-mount adaptor features a wide field of view equivalent to field number 21 (FN21) with dedicated brightness and color shading correction and seamless stitching.

Microscopy Dedicated Features

Intelligent camera control and image processing make observation easier, faster, and more comfortable.

  • Automatic, fast camera settings adjustment
  • Reduce excitation damage of fluorescence samples with smart noise reduction

Easily Capture Digital Microscope Images

  • Olympus Smart Image Averaging (OSIA) suppresses noise and eliminates artifacts while maintaining a fast frame rate
  • Focus peaking helps you identify which sample regions are currently in focus
  • High contrast mode enables easier image acquisition with a high signal-to-noise ratio so that you can capture high-quality images from dim samples during polarization and fluorescence microscopy
  • Fast live function provides a consistently high displayed frame rate during long-exposure imaging
without OSIA
with OSIA
without focus peaking
with focus peaking
Flourescence image captured using high contrast mode
without fast live
with fast live

Simple-to-Use Camera

  • Thoughtfully designed software enables you to acquire images with just a single click for an efficient workflow
  • Attach the camera’s standalone module to the back of your monitor to free up valuable desk space
  • Plug the camera into your computer’s USB 3.1 port*, and it’s ready to use—no separate AC adaptor required

* USB 3.1 Gen is compatible with USB 3.0.



DP74 Specifications
Item Specifications
Camera type Single chip color CMOS (pixel shifting)
 Cooling system: Peltier device
Imaging Sensor Size Single chip color CMOS (pixel shifting)
 Cooling system: Peltier device
Camera mount C-mount
Effective image resolution 5760 × 3600 (pixel shifting, 3-CMOS mode)
2880 × 1800 (pixel shifting, 3-CMOS mode)
1920 × 1200 (1 × 1, 3-CMOS mode)
1920 × 1080 (1 × 1), 1600 × 1200 (1 × 1)
960 × 600 (1 × 1, 2 × 2)
 ROI
Sensitivity 0.5X/1X/2X/4X/8X/16X (ISO 200 / 400 / 800 / 1600 / 3200 / 6400 equivalent)
A/d 12 bit
Metering modes Mode Auto, SFL-Auto, Manual
Adjustment ±2.0 EV step: 1/3 EV
Time 39 μs to 60 s
Metering modes Full image, 30%, 1%, 0.1%
Binning Full image, 30%, 1%, 0.1%
Live frame rate 1920 × 1200 (1 × 1): 60 fps, 1920 × 1080 (1 × 1): 60 fps
Still image transfer time 1920 × 1200 (1 × 1): 60 fps, 1920 × 1080 (1 × 1): 60 fps
Color space sRGB, AdobeRGB
Image file format sRGB, AdobeRGB
Position navigator Available
Dimensions Camera interface cable Approx. 2.5 m



DP74 System Requirements
Item Specifications
CPU Intel Core i5, Intel Core i7, Intel Xeon, (or equivalent)
RAM 4 GB or more (dual-channel)
Extension slot PCI express X4 Rev.2.0 or later
Half-size, low-profile PCIe board
 compatible (106.7 mm x 174.6 mm)
OS Microsoft Windows 10 Pro (64 bit)
Microsoft Windows 8.1 Pro (64 bit)
Microsoft Windows 7 Ultimate /
Professional SP1 (32 bit / 64 bit)
 Language: English / Japanese
