Cassette Cabinet WWAC-1680
The WWAC-1680 Cassette Cabinet is a high-capacity storage system designed for long-term preservation and traceability of paraffin-embedded tissue blocks. It supports pathology departments, independent labs, forensic agencies, and research institutions by providing secure, durable, and organized storage for original biological samples. Its steel construction, modular stacking design, and large drawer capacity make it ideal for high-volume archival environments.
- Durable Construction: Built from 0.8 mm Baosteel cold-rolled steel plate, Surface treated with acid washing + phosphating, Finished with high-temperature epoxy resin powder coating for corrosion resistance and long service life, All structural components are single-mould formed for enhanced rigidity and stability
- Smooth Drawer Operation: Drawers equipped with roller-guided tracks, Recessed handles made from high-strength engineering plastic, Designed for frequent daily access without deformation

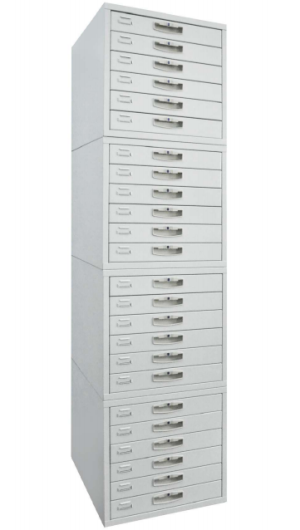

- High-Capacity Storage: Dimensions per unit: 500 × 450 × 1680 mm, Each full set consists of 4 stacked units, each measuring 500 × 450 × 390 mm, Base dimensions: 500 × 450 × 120 mm, Each unit contains 6 vertical drawers, totalling 24 drawers per set, Approximate storage capacity: 15,000 wax blocks per set, Ideal for large-volume pathology workflow
- Flexible Configuration: Cassette cabinets and slide cabinets are stackable, enabling modular expansion, Compatible with diverse laboratory layouts, Optional lockable version available

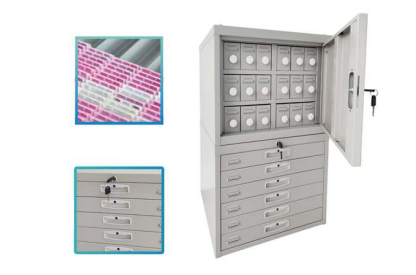

- Lockable Version (Optional): Dimensions per unit: 500 × 540 × 400 mm (length × depth × height), Provides secure storage for controlled-access environments
- Recommend using same paraffin wax for infiltration and embedding
- Hospital pathology departments
- Independent diagnostic laboratories
- Forensic identification agencies
- Medical universities and research institutes
- Biobanking and archival facilities
