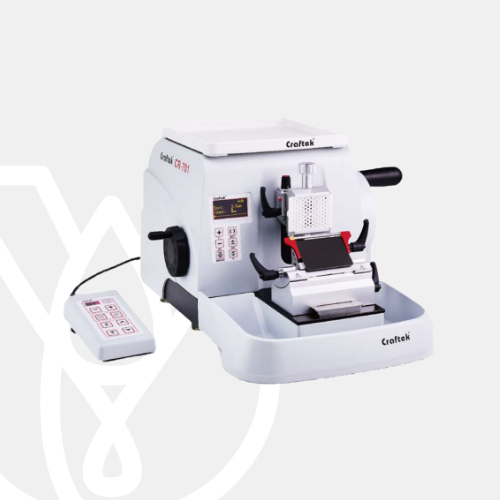

- The CR-701 and CR-703 VersaCUT rotary microtomes are enhanced semi-motorized instruments designed for high-precision sectioning, including mega and super-mega paraffin blocks. Building on the proven EstaCUT platform, they offer superior blade control, ergonomic operation, and efficient workflow integration.
- Compared to traditional sliding microtomes, VersaCUT models provide easier angle adjustment, smoother blade replacement, and the ability to produce consecutive slices. The CR-703 includes a detachable control box for advanced parameter settings and flexible operation. These models are ideal for high-volume pathology labs and specialized histology applications.
Sectioning Precision
- Section thickness range: 0.5–100 μm
- Trimming thickness range: 1–600 μm
- Fine adjustment increments for both sectioning and trimming
Specimen Handling
- Max specimen size: 50 × 60 × 40 mm
- Vertical stroke: 70 mm ± 1 mm
- Orientation: Horizontal ±8°, Vertical ±8°
- Specimen retraction: 5~100um, in 5um increments. On or Off
Motorized Feed System
- Electric coarse feed: 20um/click and 1000um/s
- Auto alternation between rocking and rotation modes
- Instant horizontal movement display with sound alert
Blade & Clamp Flexibility
- Blade holder base movement: ±24 mm
- Adjustable blade angle for optimal sectioning
- Quick change of tissue clamps
- Non-stick coating plate for smooth slicing
Ergonomic & Safety Design
- Foldable handle for easy transport
- Auto hibernation after 15 minutes idle
- Light and noise-free rotation
- Ideal for hard tissue sectioning
- Auto lubrication system for smooth operation
Hospital pathology departments / Clinical diagnostic laboratories / Research institutions / High-volume pathology laboratories / Research institutions / Specialized histology workflows / Mega and super-mega block sectioning
